Is there a way to configure the system so that it will check if a consolidation is already running before allowing another user to start a consolidation? If so, how do we configure the system to do this?
Hi, in case you want to check for a running consolidation before starting a new task executed from a dashboard button, you could try this Dashboard Extender rule. This reads the tasks from the task activity which you can adjust as needed.
Imports System.Collections.Generic
Imports System.Data
Imports System.Data.Common
Imports System.Globalization
Imports System.IO
Imports System.Linq
Imports System.Windows.Forms
Imports Microsoft.VisualBasic
Imports OneStream.Finance.Database
Imports OneStream.Finance.Engine
Imports OneStream.Shared.Common
Imports OneStream.Shared.Database
Imports OneStream.Shared.Engine
Imports OneStream.Shared.Wcf
Imports OneStream.Stage.Database
Imports OneStream.Stage.Engine
Namespace OneStream.BusinessRule.DashboardExtender.TA_DashboardHelperQueries
Public Class MainClass
Public Function Main(ByVal si As SessionInfo, ByVal globals As BRGlobals, ByVal api As Object, ByVal args As DashboardExtenderArgs) As Object
Try
Select Case args.FunctionType
Case Is = DashboardExtenderFunctionType.ComponentSelectionChanged
If args.FunctionName.XFEqualsIgnoreCase("CheckTaskActivity") Then
'Retrieve parameters passed to rule, possibly to be used to filter the current data unit, if needed
Dim wfTimeParameter As String = args.NameValuePairs.XFGetValue("wfTimeParameter")
Dim wfScenarioParameter As String = args.NameValuePairs.XFGetValue("wfScenarioParameter")
Dim wfProfileParameter As String = args.NameValuePairs.XFGetValue("WFProfileParameter")
Dim wfAppNameParameter As String = args.NameValuePairs.XFGetValue("wfAppNameParameter")
'Define string to write to error log for further analysis of running / blocking tasks
Dim errorLogMessage As New List(Of String)
errorLogMessage.Add("The below tasks are running. Please wait for those to complete before executing your routine.")
'Define SQL script to pull necessary information from TaskActivity table
Dim sql As New Text.StringBuilder
sql.AppendLine("SELECT top 10 TaskActivityType, 'Unknown' as TaskActivityTypeDesc, TaskActivityStatus, 'Unknown' as TaskActivityStatusDesc, Description, AppName, UserName ")
sql.AppendLine("FROM [OneStream_Framework].dbo.[TaskActivity] ")
'Pull rows from table for required task types and status
'TaskActivityType 9000 = Calculate, 11000 = Consolidate
'TaskActivityStatus 0 = Queued, 1000 = Running
sql.AppendLine($"WHERE TaskActivityType = '11000' AND TaskActivityStatus = '1000' AND AppName = '{wfAppNameParameter}'")
'Using SQL syntax and ExecuteSqlUsingReader to get the Data Table
Dim dt As DataTable = Nothing
Using dbConnApp As DbConnInfo = BRApi.Database.CreateApplicationDbConnInfo(si)
dt = BRApi.Database.ExecuteSqlUsingReader(dbConnApp, sql.ToString, False)
End Using
Dim selectionChangedTaskResult As New XFSelectionChangedTaskResult()
selectionChangedTaskResult.IsOK = True
selectionChangedTaskResult.ShowMessageBox = True
selectionChangedTaskResult.ChangeSelectionChangedUIActionInDashboard = False
selectionChangedTaskResult.ModifiedSelectionChangedUIActionInfo = Nothing
selectionChangedTaskResult.ChangeSelectionChangedNavigationInDashboard = False
selectionChangedTaskResult.ModifiedSelectionChangedNavigationInfo = Nothing
selectionChangedTaskResult.ChangeCustomSubstVarsInDashboard = False
selectionChangedTaskResult.ModifiedCustomSubstVars = Nothing
selectionChangedTaskResult.ChangeCustomSubstVarsInLaunchedDashboard = False
selectionChangedTaskResult.ModifiedCustomSubstVarsForLaunchedDashboard = Nothing
'Check if determined activity types are running and create message
' If Not dt Is Nothing Then
If Not dt.Rows.Count.XFToString.XFContainsIgnoreCase("0") Then
selectionChangedTaskResult.Message = "Task is running, please check the task activity and wait for it to be completed."
dt.Columns("TaskActivityTypeDesc").ReadOnly = False
dt.Columns("TaskActivityTypeDesc").MaxLength = -1
dt.Columns("TaskActivityStatusDesc").ReadOnly = False
dt.Columns("TaskActivityStatusDesc").MaxLength = -1
For Each dr As DataRow In dt.Rows
dr.BeginEdit
dr("TaskActivityTypeDesc") = TaskActivityType.GetName(GetType(TaskActivityType), dr("TaskActivityType"))
dr("TaskActivityStatusDesc") = TaskActivityStatus.GetName(GetType(TaskActivityStatus), dr("TaskActivityStatus"))
dr.EndEdit
errorLogMessage.Add("Process: " & dr("TaskActivityTypeDesc").ToString & " - Status: " & dr("TaskActivityStatusDesc").ToString & " - Data Unit: " & dr("Description").ToString & " - User: " & dr("UserName").ToString)
Next

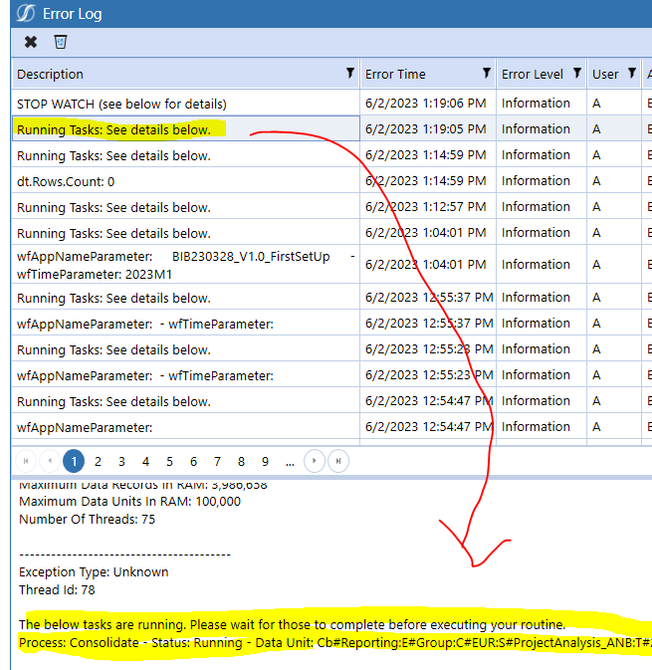

'Write running tasks into error log
brapi.ErrorLog.LogMessage(si,"Running Tasks: See details below.", vbCrLf & String.Join(vbCrLf, errorLogMessage.ToArray))
Else
selectionChangedTaskResult.Message = "Task successfully completed."
'...run DM job or whatever is needed when no other process is blocking
'...execute logic from here!
End If
Return selectionChangedTaskResult
End If
End Select
Return Nothing
Catch ex As Exception
Throw ErrorHandler.LogWrite(si, New XFException(si, ex))
End Try
End Function
End Class
End Namespace
Please note the following things:
- I limited the check to the top 10 rows in the task activity table for testing purposes.
- This rule needs to be executed from a dashboard that is attached to a workflow (Workspace). Otherwise, the WF parameters will be blank and the rule will not work as I set it up.
- Not all of those parameters are in use at the moment in the rule, but have been left in as an example to use to e.g. filter on the correct data unit in the task activity to be consolidated as I assume one wants to narrow it down and not block the process for ANY consolidation run (which is possible as well, of course).
You could call a DataQualityEventHandler Business Rule to read the data management sequence in the calculation definitions page, followed by a consolidation within. The event handler business rule will evaluate the consolidation status before running a consolidation.
Here's an example of the evaluation code.
‘Evaluate the consolidation status.
If BRApi.Dashboards.Parameters.GetLiteralParameterValue(si, False, "ParamConsolFlagStatus").Contains("False")
