Using XFBR String Service in WS Assembly

I'm new to WS assembly - trying to get a simple example of setting up an xfbr and use it in a cubeview but not successful. Here's what I did - what did I do wrong?

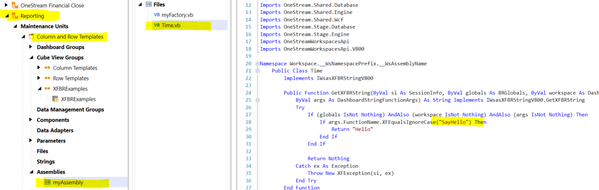

1. Set up XFBR String Service:

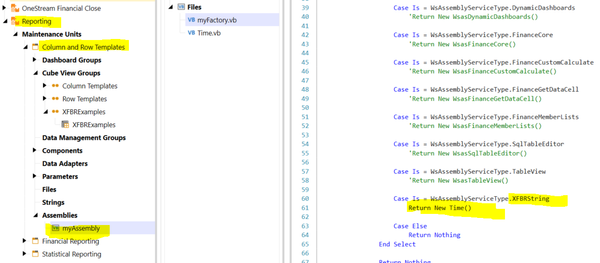

2. Then set up factory:

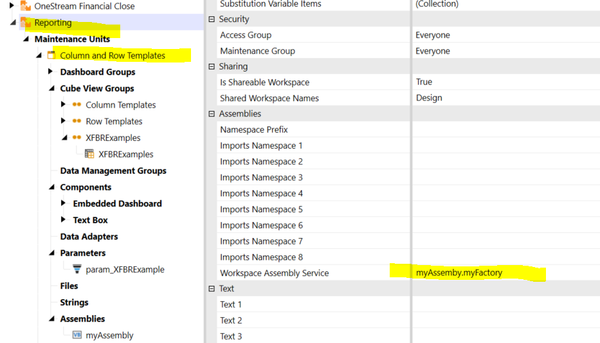

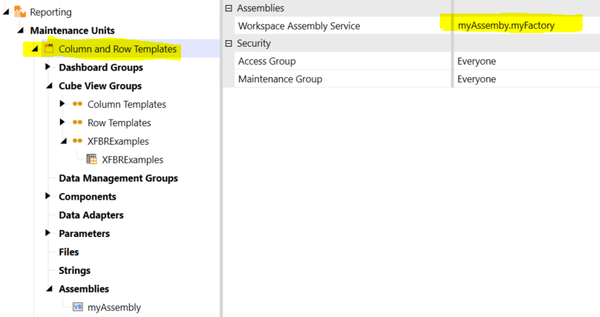

3. Then added to my maintenance units & workspace

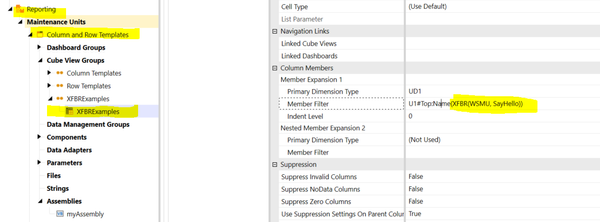

4. Added to cv:

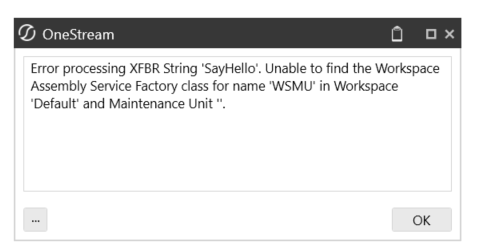

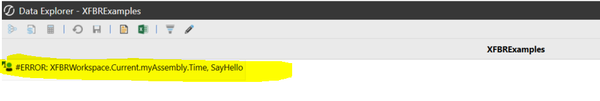

=> I get this error. Not sure why it is looking for the service factory in default.





I followed the design guide, tried all the following syntax, none have worked:

XFBR(Workspace.Reporting.myAssembly.Time, SayHello)

XFBR(Workspace.Current.myAssembly.Time, SayHello)



Thank you.

dashboards
Reports

6 Replies

  • JackLacava's avatar
    JackLacava
    Icon for OneStream Employee rankOneStream Employee
    1 year ago

    You are using the syntax for traditional XFBR files inside an assembly, but what you want is the syntax to point to a Service Factory: Workspace.MyWorkspace.MyMaintUnit.WSMU or Workspace.MyWorkspace.WS.

    This will always be the case when you create a Service, regardless of type: you are targeting a factory, not the service itself.

  • MarkusWipp's avatar
    MarkusWipp
    Contributor
    1 year ago

    Hi ghoang,

    I had an issue just yesterday, where an XFBR didn't work with Workspace.Current..... I instead used Workspace.MyWSName..... and it worked.

    Hope that helps!

    Best regards

    Markus

  • ghoang's avatar
    ghoang
    New Contributor III
    1 year ago

    I just tried that... still not working.

    It does work when I call the assembly from a dashboard (e.g. use the xfbr return string as page caption, or use as a label), but it does not work when I call it from the cubeview.

  • ThorJensen's avatar
    ThorJensen
    New Contributor II
    1 year ago

    Hi ghoang

    Did you manage to get this to work? I've also had the issue when running the xfbr through cubeviews. I found that the solution was 2 fold.

    • Refernce xfbr using full workspace = XFBR(Workspace.Reporting.WS, SayHello). You only need to route the xfbr to your service factory and there using .WS correctly routes you here.
    • Making the workspace shared.
  • EAlgarin's avatar
    EAlgarin
    New Contributor
    10 months ago

    Hello everyone,

    In my case, I was able to retrieve the expected value from my Assembly using parameters. I created a Literal value parameter that has the sintax: XFBR(WSMU, MyFunction, Filter=|!XXX!|) . Then in my Cube view, I call that parameter and it works! Hope this is useful,

    Cheers,

  • RobbSalzmann's avatar
    RobbSalzmann
    Valued Contributor II
    10 months ago

    In my experience, It's not necessary to create a "String service" XFBR then call a Service Factory to build and return it.

    A Simplified, Direct Approach:

    1. Right click the assembly directory where you want to create your XFBR.

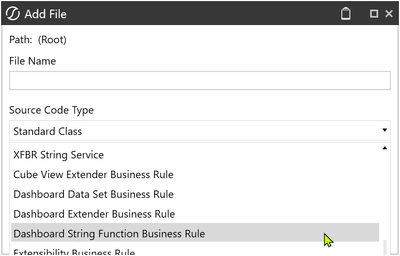

    2. Select Add File.
    3. Select Dashboard String Function Business Rule

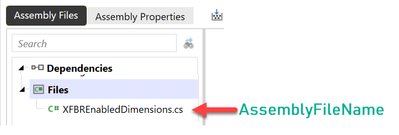

    4. The file name becomes the name of the assembly file and the rightmost element of the Assembly file's namespace.
    5. In your component or cube view, reference the assembly XFBR as follows:
      1. XFBR(Workspace.{WorkspaceName}.{AssemblyName}.{AssemblyFileName}, {FunctionName}, paramName=value)
