Hi, I've had a dig around, but I can't seem to find it. Anyone know where I can see the disk space utilisation?We've set up a number of new apps in our environment recently, and I'm concerned we might be running out of space.

Hi Beeswing,I do not think you can find this directly and the reason behind is that the space increases automatically on Azure elastic pools. I think you could have a look under System > Environement>OS DB Server and do a filter on ElasticPoolStorageMB. That is the closest thing i can help with.Please give a kudo if it helps 🙂

Hi, Maybe. I just searched my email and it looks like it was provided as an XML file from OS cloud support team in July 2020. Send me a message with your email and I can forward it to you if you'd like.

Hi, you can check an individual database size with an extensibility rule containing code like this:Dim sql As String = "EXEC sp_spaceused;"Dim dbConnApp As DbConnInfoApp = brapi.Database.CreateApplicationDbConnInfo(si)Using dbConnAppUsing dt As DataTable = BRAPi.Database.ExecuteSql(dbConnApp, sql.ToString, True)If Not dt Is Nothing Then'Reference dt to access data table resultsFor Each dr As DataRow In dt.Rows'Process rowsbrapi.ErrorLog.LogMessage(si, "database_size: " + dr("database_size"))brapi.ErrorLog.LogMessage(si, "unallocated space: " + dr("unallocated space"))NextEnd IfEnd UsingEnd Using

Hello! We're on the cloud and this is how we review our application space: Bottom right corner of the dashboard lists the GB used by application in the environment where you've originated the dashboard (ie. DEV or PROD environments). Hope that's useful!

Hi, It's not a marketplace tool. Can you try searching your dashboards for "storage chart" and see if it's there?I assume it's out of the box OS as we didn't create it. If you can't find it, I'd suggest contacting your OS customer success/account manager or maybe submitting a OS support ticket for more direction.

How to check disk space | OneStream Community

21 Replies

Sandy2024
New Contributor
10 months ago
I tried this solution, and it works perfectly for an application. It would show the size details for that specific app which is open. I am just wondering if it's possible to make this rule work for Environment level?
- Spalomino
  New Contributor III
  10 months ago
  Sandy: I am sure that is possible. We would just need to find the SQL stored command that would provide that information. I'll look around and see what I can find.
Spalomino
New Contributor III
10 months ago
Sandy: The output of the code shows up in the System>Error Log. You will see two lines one for unallocated space, the other for database_size.

T_Kress: Thanks for sharing. I did download that application, but I couldn't get it to run on my version of 8.5. That is why I went the code direction.

Thanks,

SP
T_Kress
OneStream Employee
10 months ago

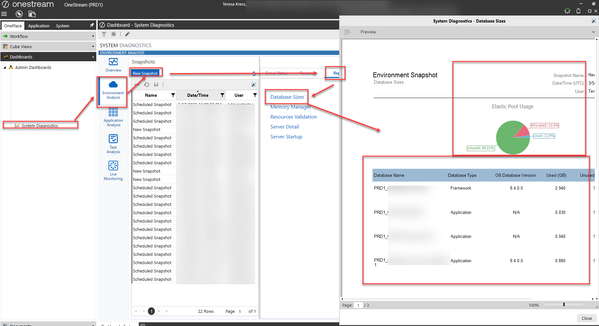

The system diagnostics dashboard has that info here:
Spalomino
New Contributor III
10 months ago
Mark: I hope you don't mind. I add the full code. For those like me who struggle with VB. :)

Imports System

Imports System.Collections.Generic

Imports System.Data

Imports System.Data.Common

Imports System.Globalization

Imports System.IO

Imports System.Linq

Imports Microsoft.VisualBasic

Imports OneStream.Finance.Database

Imports OneStream.Finance.Engine

Imports OneStream.Shared.Common

Imports OneStream.Shared.Database

Imports OneStream.Shared.Engine

Imports OneStream.Shared.Wcf

Imports OneStream.Stage.Database

Imports OneStream.Stage.Engine

Namespace OneStream.BusinessRule.Extender.SJP_GIGChk 'Your Extensibility Rule must be the same name.

Public Class MainClass

Public Function Main(ByVal si As SessionInfo, ByVal globals As BRGlobals, ByVal api As Object, ByVal args As ExtenderArgs) As Object

Try

'Hi, you can check an individual database size With an extensibility rule containing code Like this:

Dim sql As String = "EXEC sp_spaceused;"

Dim dbConnApp As DbConnInfoApp = brapi.Database.CreateApplicationDbConnInfo(si)

Using dbConnApp

Using dt As DataTable = BRAPi.Database.ExecuteSql(dbConnApp, sql.ToString, True)

If Not dt Is Nothing Then

'Reference dt to access data table results

For Each dr As DataRow In dt.Rows

'Process rows

brapi.ErrorLog.LogMessage(si, "database_size: " + dr("database_size"))

brapi.ErrorLog.LogMessage(si, "unallocated space: " + dr("unallocated space"))

Next

End If

End Using

End Using

Return Nothing

Catch ex As Exception

Throw ErrorHandler.LogWrite(si, New XFException(si, ex))

End Try

End Function

End Class

End Namespace
- jayaleck
  New Contributor III
  2 days ago
  Hope you don't mind, took what you did and ran with it!

  Imports System

  Imports System.Collections.Generic

  Imports System.Data

  Imports System.Data.Common

  Imports System.Globalization

  Imports System.IO

  Imports System.Linq

  Imports Microsoft.VisualBasic

  Imports OneStream.Finance.Database

  Imports OneStream.Finance.Engine

  Imports OneStream.Shared.Common

  Imports OneStream.Shared.Database

  Imports OneStream.Shared.Engine

  Imports OneStream.Shared.Wcf

  Imports OneStream.Stage.Database

  Imports OneStream.Stage.Engine

  Namespace OneStream.BusinessRule.Extender.TEST_dbStats

  Public Class MainClass

  Public Function Main(ByVal si As SessionInfo, ByVal globals As BRGlobals, ByVal api As Object, ByVal args As ExtenderArgs) As Object

  Try

  Dim AppName As String = si.AppName

  BRApi.ErrorLog.LogMessage(si, "SQL Version: v6 - single real-time query, no OSD dependency")

  ' ---------------------------------------------------------------

  ' Database Space Breakdown

  ' ---------------------------------------------------------------

  ' TotalSizeGB = ReservedGB + UnallocatedGB + LogFileGB

  ' ReservedGB = UsedGB + UnusedGB

  ' UsedGB = DataGB + IndexSizeGB

  '

  ' Definitions:

  ' TotalSizeGB - Full file size on disk (data files + log file)

  ' UnallocatedGB - Free space no object has claimed yet

  ' ReservedGB - Space claimed by tables and indexes

  ' UsedGB - Space actively holding data and indexes

  ' UnusedGB - Reserved by objects but sitting empty

  ' DataGB - Row data only (index_id 0 or 1 = heap/clustered)

  ' IndexSizeGB - Non-clustered indexes only (index_id > 1)

  ' LogFileGB - Derived: TotalSize - Reserved - Unallocated

  '

  ' Sources:

  ' TotalSizeGB, UnallocatedGB → sys.database_files (real-time)

  ' ReservedGB, DataGB,

  ' IndexSizeGB, UnusedGB → sys.allocation_units

  ' + sys.partitions (real-time)

  ' split on index_id

  ' ---------------------------------------------------------------

  Dim sql As String =

  "SELECT " &

  " DB_NAME() AS DatabaseName, " &

  " CAST(f.total_size * 8.0 / 1048576 AS DECIMAL(10,2)) AS TotalSizeGB, " &

  " CAST(f.total_used * 8.0 / 1048576 AS DECIMAL(10,2)) AS UsedByFilesGB, " &

  " CAST((f.total_size - f.total_used) " &

  " * 8.0 / 1048576 AS DECIMAL(10,2)) AS UnallocatedGB, " &

  " CAST(s.reserved_pages * 8.0 / 1048576 AS DECIMAL(10,2)) AS ReservedGB, " &

  " CAST(s.data_pages * 8.0 / 1048576 AS DECIMAL(10,2)) AS DataGB, " &

  " CAST(s.index_pages * 8.0 / 1048576 AS DECIMAL(10,2)) AS IndexSizeGB, " &

  " CAST((s.reserved_pages - s.data_pages - s.index_pages) " &

  " * 8.0 / 1048576 AS DECIMAL(10,2)) AS UnusedGB " &

  "FROM ( " &

  " SELECT " &

  " SUM(size) AS total_size, " &

  " SUM(FILEPROPERTY(name, 'SpaceUsed')) AS total_used " &

  " FROM sys.database_files " &

  ") f " &

  "CROSS JOIN ( " &

  " SELECT " &

  " SUM(a.total_pages) AS reserved_pages, " &

  " SUM(CASE WHEN p.index_id IN (0,1) " &

  " THEN a.used_pages " &

  " ELSE 0 END) AS data_pages, " &

  " SUM(CASE WHEN p.index_id > 1 " &

  " THEN a.used_pages " &

  " ELSE 0 END) AS index_pages " &

  " FROM sys.partitions p " &

  " JOIN sys.allocation_units a " &

  " ON p.partition_id = a.container_id " &

  ") s"

  Dim dbConnApp As DbConnInfoApp = BRApi.Database.CreateApplicationDbConnInfo(si)

  Dim totalSize As Decimal = 0

  Dim usedByFiles As Decimal = 0

  Dim unalloc As Decimal = 0

  Dim reserved As Decimal = 0

  Dim data As Decimal = 0

  Dim indexSize As Decimal = 0

  Dim unused As Decimal = 0

  Dim dbName As String = "N/A"

  Using dbConnApp

  Using dt As DataTable = BRApi.Database.ExecuteSql(dbConnApp, sql, True)

  If dt IsNot Nothing AndAlso dt.Rows.Count > 0 Then

  Dim dr As DataRow = dt.Rows(0)

  dbName = dr("DatabaseName").ToString()

  totalSize = CDec(dr("TotalSizeGB"))

  usedByFiles = CDec(dr("UsedByFilesGB"))

  unalloc = CDec(dr("UnallocatedGB"))

  reserved = CDec(dr("ReservedGB"))

  data = CDec(dr("DataGB"))

  indexSize = CDec(dr("IndexSizeGB"))

  unused = CDec(dr("UnusedGB"))

  End If

  End Using

  End Using

  ' ---------------------------------------------------------------

  ' Derive UsedGB and LogFileGB in VB

  ' ---------------------------------------------------------------

  Dim usedGB As Decimal = Math.Round(data + indexSize, 2)

  Dim logFileGB As Decimal = Math.Round(totalSize - reserved - unalloc, 2)

  ' ---------------------------------------------------------------

  ' Percentage breakdown — against TotalSizeGB as baseline

  ' ---------------------------------------------------------------

  Dim pctReserved As Decimal = Math.Round(reserved / totalSize * 100, 1)

  Dim pctUsed As Decimal = Math.Round(usedGB / totalSize * 100, 1)

  Dim pctData As Decimal = Math.Round(data / totalSize * 100, 1)

  Dim pctIndex As Decimal = Math.Round(indexSize / totalSize * 100, 1)

  Dim pctUnused As Decimal = Math.Round(unused / totalSize * 100, 1)

  Dim pctUnalloc As Decimal = Math.Round(unalloc / totalSize * 100, 1)

  Dim pctLog As Decimal = Math.Round(logFileGB / totalSize * 100, 1)

  ' ---------------------------------------------------------------

  ' Math verification checks

  ' ---------------------------------------------------------------

  Dim checkTotal As Decimal = Math.Round(reserved + unalloc + logFileGB, 2)

  Dim checkReserved As Decimal = Math.Round(usedGB + unused, 2)

  Dim checkUsed As Decimal = Math.Round(data + indexSize, 2)

  Dim totalRounded As Decimal = Math.Round(totalSize, 2)

  Dim reservedRounded As Decimal = Math.Round(reserved, 2)

  ' ---------------------------------------------------------------

  ' Log full breakdown

  ' ---------------------------------------------------------------

  BRApi.ErrorLog.LogMessage(si,

  $"App: {AppName} | DB: {dbName} | " &

  $"--- Level 1 (Total) --- " &

  $"TotalSize: {totalSize} GB | " &

  $"UsedByFiles: {usedByFiles} GB | " &

  $"Unallocated: {unalloc} GB ({pctUnalloc}% of Total) | " &

  $"LogFile: {logFileGB} GB ({pctLog}% of Total) | " &

  $"--- Level 2 (Reserved) --- " &

  $"Reserved: {reserved} GB ({pctReserved}% of Total) | " &

  $"UsedGB (Data+Index): {usedGB} GB ({pctUsed}% of Total) | " &

  $"Unused: {unused} GB ({pctUnused}% of Total) | " &

  $"--- Level 3 (Used) --- " &

  $"Data: {data} GB ({pctData}% of Total) | " &

  $"IndexSize: {indexSize} GB ({pctIndex}% of Total) | " &

  $"--- Math Checks --- " &

  $"Total=Reserved+Unalloc+Log: {checkTotal} = {totalRounded} → {checkTotal = totalRounded} | " &

  $"Reserved=Used+Unused: {checkReserved} = {reservedRounded} → {checkReserved = reservedRounded} | " &

  $"Used=Data+Index: {checkUsed} = {usedGB} → {checkUsed = usedGB}"

  )

  Return Nothing

  Catch ex As Exception

  Throw ErrorHandler.LogWrite(si, New XFException(si, ex))

  End Try

  End Function

  End Class

  End Namespace
- Sandy2024
  New Contributor
  10 months ago
  Hi Spalomino

  Thanks for providing this solution. I have a question, where i would see the results after running this business, Rule?

  Thank you

  Sandy
MarkMatson
New Contributor III
3 years ago
Hi, you can check an individual database size with an extensibility rule containing code like this:
Dim sql As String = "EXEC sp_spaceused;"
Dim dbConnApp As DbConnInfoApp = brapi.Database.CreateApplicationDbConnInfo(si)

Using dbConnApp
Using dt As DataTable = BRAPi.Database.ExecuteSql(dbConnApp, sql.ToString, True)
If Not dt Is Nothing Then
'Reference dt to access data table results
For Each dr As DataRow In dt.Rows
'Process rows
brapi.ErrorLog.LogMessage(si, "database_size: " + dr("database_size"))
brapi.ErrorLog.LogMessage(si, "unallocated space: " + dr("unallocated space"))
Next

End If
End Using
End Using
NicoleBruno
Valued Contributor
4 years ago
Hello!
We're on the cloud and this is how we review our application space:
Bottom right corner of the dashboard lists the GB used by application in the environment where you've originated the dashboard (ie. DEV or PROD environments). Hope that's useful!
- Beeswing
  New Contributor III
  3 years ago
  Hi.. I know it's been a while, but hoping you could provide some more info.
  I don't have the Database Statistics Dashboard that you mentioned, and I can't find it on the market place. Is this one you created yourself? Or is it indeed from something in the market place?

  Thanks
  - NicoleBruno
    Valued Contributor
    3 years ago
    Hi,
    It's not a marketplace tool. Can you try searching your dashboards for "storage chart" and see if it's there?
    I assume it's out of the box OS as we didn't create it. If you can't find it, I'd suggest contacting your OS customer success/account manager or maybe submitting a OS support ticket for more direction.
NicolasArgente
Valued Contributor
4 years ago
Hi Beeswing,
I do not think you can find this directly and the reason behind is that the space increases automatically on Azure elastic pools. I think you could have a look under System > Environement>OS DB Server and do a filter on ElasticPoolStorageMB. That is the closest thing i can help with.
Please give a kudo if it helps 🙂
