New to OneStream - Account Dimension build

Hi,

I'm new to OneStream and wondering if this Account rollup is possible using inherited Account dimensions?

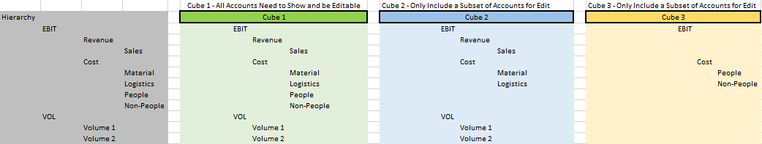

Cube 1 is the Main cube and needs to show all Accounts, but the Cube2&3 should only show & operate on a subset of Accounts within this Hierarchy

Thanks for your help!

Sincerely,
David

  • Krishna's avatar
    Krishna
    Valued Contributor

    Hi - It can be achieved using the extensibility, There should be 3 levels of extensibility and each cube should assign the respective account in the Cube Dimension settings.

    • DavidT's avatar
      DavidT
      New Contributor III

      This seems the most direct way of doing it:

      Cube1:

      Cube 2:

      Cube 3:

      Anything that is common aross all 3 cubes, I put on the parent Cube1 Hierarchy... but my question is really does Cube 1 allow inputs on the lower levels?

      Does Cube 1 even see the detailed accounts? and/or does Cube 2 and Cube 3 see the parent accounts defined in Cube 1?





      • JackLacava's avatar
        JackLacava
        Honored Contributor

        Cube 2 and 3 will see parent Accounts, they are automatically aggregated.

        Cube 1 will only see data for DT_REVENUE and DT_COST, it will not know anything about lower levels.

  • DavidT's avatar
    DavidT
    New Contributor III

    I've built an alt view of the Account dimension (I tried to define relationships across dimensions, but was not able to do so, so instead of a top-down approach, I went bottom-up.

    The issues that I encountered were:

    1. I could not add Members with the same name to different structures if they were already defined in another dimension rollup (say sibling Dimensions that don't inherit)... I would have to change the member name.

    2. I could not add relationships between two different Dimensions (siblings of one another).

    3. I could not have a Child Dimension inherit from 2 Dimensions.

    So this may work, I'm not sure.

    1st Level (Cube 3) - Lowest level

    2nd Level (Cube 2) Add some Revenue Accounts and some Cost Accounts

    Level 3 (Cube 1) Really the main cube where all data should be visible
