Buttons: Does not aling when using browser.

Hi

If/when we are going to move to the browser solution, I would like to have my dashboard menu to be align to left.

This is how it looks in the app:



This is how it looks in browser. It is OK that icons are in colors, but I can't align the text to left.

Component properties are the following (with no effect)

Any suggestion on how to align it?

Regards

Ole

dashboards
Parameters

1 Reply

  • sameburn's avatar
    sameburn
    Icon for OneStream Employee rankOneStream Employee
    8 days ago

    Hi Ole_S_P​

    I think the inconsistent formatting issue is that you are using a Unicode (Text) image and actual Text on the same Text property of the button(s).

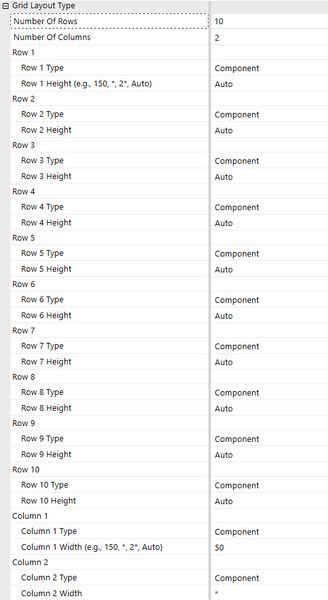

    If you switched approach to use a Button (for the Image) and a Label (for the Text), for example.  Then you should be able to achieve what you are looking for on Windows Client and Browser (BUX) consistently.  Use the Dashboard Layout Type Grid and setting 2 columns and 10 rows (as per your screenshot) and you have greater control over the width of both columns and you also have more control over component level formatting (e.g. embedded in this dashboard) with this option. E.g.

    There are currently some small nuances between Client and BUX.  An approach like the above would solve for this.  Obviously you end up with more components e.g. the Labels.  But these days we can do more with less e.g. Dynamic Dashboards

    The use of Unicode for your images instead of a Workspace file, for example is the reason that it renders with colours in BUX e.g. differently to Windows Client.

    Hope this helps

    Sam
