Hi all, I'm currently developing a dashboard that will likely be used by multiple users at the same time. Users will be able to set some initial parameters within the dashboard, and click on a button that will trigger a BR that will return some output rows within a table in the database. After the process is complete, the user will be able to see the output rows through the following SQL Table Editor:the parameters that you can see in the "Where Clause" are literal parameters that are set from within the BR when it is triggered by the user (using BRApi.Dashboards.Parameters.SetLiteralParameterValue()), and their value depend on the initial parameters that the user selected in the dashboard.The problem is, I saw in some posts within the forum that literal parameters are "common" to all users, so every time one user will click the button and launch the process, the literal parameters will be changed. This is a problem, because we expect users to use the dashboard simultaneously. Is there a workaround that does not use literal parameters? Or is there a way to make literal parameters "unique" to every user? Thanks in advance!

Literal Parameters values are application-wide, session inspecfic. Things like formats and colors work well in Literal parameters For user/session specific parameters, use Input Parameters:In your code, these Input Parameters are oddly named "ModifiedSubVars". You change the value of the ModifiedSubVars on the returned Task Result object, e.g. XFLoadDashboardTaskResult, XFSelectionChangedTaskResult depending on what event you're handling. Be sure to also set one or all of the ChangeCustomSubstVarsIn properties to True.E.g. selectionChangedTaskResult.ChangeCustomSubstVarsInDashboard = TrueselectionChangedTaskResult.ModifiedCustomSubstVars.Add("pm_myParameter_Name", "User Specific Value")

Literal parameters and multiple users

ChristianW

Valued Contributor

2 years ago

We are mainly using SetLiteralParameter to store options that should be valid for everybody, like security settings or some basic information like top member nodes, we are not using literal parameters to do anything dynamic or session dependent.

For this purpose, we have all other parameters with 'Input Value' being the most generic.

You can set these dynamic parameters using 'Dashboard Extender' business rules and depending on the use case these two objects XFLoadDashboardTaskResult (for LoadDashboard activities)

Dim loadDashboardTaskResult As New XFLoadDashboardTaskResult()

and XFSelectionChangedTaskResult (actions triggered by dashboard objects)

Dim selectionChangedTaskResult As New XFSelectionChangedTaskResult()

Both own one (load: ModifiedCustomSubstVars) or two (selection: ModifiedCustomSubstVars and ModifiedCustomSubstVarsForLaunchedDashboard) dictionaries you can use to change parameter values.

with

return loadDashboardTaskResult

return selectionChangedTaskResult

you activate the changes.

if you create a new business rule, you get basic samples for these objects:

Case Is = DashboardExtenderFunctionType.LoadDashboard
	If args.FunctionName.XFEqualsIgnoreCase("TestFunction") Then

		'Implement Load Dashboard logic here.

		If args.LoadDashboardTaskInfo.Reason = LoadDashboardReasonType.Initialize And args.LoadDashboardTaskInfo.Action = LoadDashboardActionType.BeforeFirstGetParameters Then
			Dim loadDashboardTaskResult As New XFLoadDashboardTaskResult()
			loadDashboardTaskResult.ChangeCustomSubstVarsInDashboard = False
			loadDashboardTaskResult.ModifiedCustomSubstVars = Nothing
			Return loadDashboardTaskResult
			End If
	End If

Case Is = DashboardExtenderFunctionType.ComponentSelectionChanged
	If args.FunctionName.XFEqualsIgnoreCase("TestFunction") Then

		'Implement Dashboard Component Selection Changed logic here.

		Dim selectionChangedTaskResult As New XFSelectionChangedTaskResult()
		selectionChangedTaskResult.IsOK = True
		selectionChangedTaskResult.ShowMessageBox = False
		selectionChangedTaskResult.Message = ""
		selectionChangedTaskResult.ChangeSelectionChangedUIActionInDashboard = False
		selectionChangedTaskResult.ModifiedSelectionChangedUIActionInfo = Nothing
		selectionChangedTaskResult.ChangeSelectionChangedNavigationInDashboard = False
		selectionChangedTaskResult.ModifiedSelectionChangedNavigationInfo = Nothing
		selectionChangedTaskResult.ChangeCustomSubstVarsInDashboard = False
		selectionChangedTaskResult.ModifiedCustomSubstVars = Nothing
		selectionChangedTaskResult.ChangeCustomSubstVarsInLaunchedDashboard = False
		selectionChangedTaskResult.ModifiedCustomSubstVarsForLaunchedDashboard = Nothing
		Return selectionChangedTaskResult
	End If

The property names should be self explanatory.

I hope this helps and cheers

Christian

seangly
New Contributor III
2 months ago
Hi,

Is there a way to read input parameters from a XFBR rule? I am trying to set input value parameter to use it a data adapter (FormsStatusForWorkflowUnit) it doesn't like |!inputValue!| (doesn't seem to be able to read the value setup. But it'w working great on other component (e.g. Button).

Regards,

RobbSalzmann
Valued Contributor II
2 years ago
Literal Parameters values are application-wide, session inspecfic. Things like formats and colors work well in Literal parameters

For user/session specific parameters, use Input Parameters:
In your code, these Input Parameters are oddly named "ModifiedSubVars". You change the value of the ModifiedSubVars on the returned Task Result object, e.g. XFLoadDashboardTaskResult, XFSelectionChangedTaskResult depending on what event you're handling. Be sure to also set one or all of the ChangeCustomSubstVarsIn properties to True.

E.g.
selectionChangedTaskResult.ChangeCustomSubstVarsInDashboard = True
selectionChangedTaskResult.ModifiedCustomSubstVars.Add("pm_myParameter_Name", "User Specific Value")
- fc
  New Contributor III
  2 years ago
  Hi Rob,
  I tried to use your approach but I did not succeeded. Below a sample of the code I wrote:

  Case Is = DashboardExtenderFunctionType.ComponentSelectionChanged

  Dim selectionResult As XFSelectionChangedTaskResult=Nothing

  If args.FunctionName.XFEqualsIgnoreCase("LaunchAdjustment") Then
  ..
  declare variables
  ..

  selectionResult=Me.AdjustmentProcessMain(.. list of arguments ..)

  Return selectionResult

  Private Function AdjustmentProcessMain(... list of arguments ...) As XFSelectionChangedTaskResult

  Try

  Dim selectionChangedTaskResult As New XFSelectionChangedTaskResult()
  selectionChangedTaskResult.ChangeCustomSubstVarsInDashboard = True

  selectionChangedTaskResult.ModifiedCustomSubstVars.Add("p_RowEntityList","test")
  selectionChangedTaskResult.ModifiedCustomSubstVars.Add("p_RowAccList","test1")
  selectionChangedTaskResult.ModifiedCustomSubstVars.Add("p_RowDocList","test2")

  Body of the function
  ...
  ...
  ...

  Return selectionChangedTaskResult

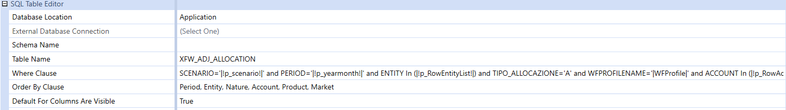

  The script is triggered when the user clicks on a button, and (as shown above) I expect the three Input Value parameters (p_RowEntityList, p_RowAccList, p_RowDocList) to be assigned some values (some random strings in this case).
  Nevertheless, when the script is triggered, the underlying process runs fine, but the parameters are not populated.
  What am I doing wrong?

  If you need additional details please let me know! Thank you
  - ChristianW
    Valued Contributor
    2 years ago
    You can only see the values, if you embed them in an object or, in the design mode:
Omkareshwar
Contributor II
2 years ago
Hi fc,

You can set user text property and fetch that value rather than a literal value parameter.
Dim objUserInfo As UserInfo = BRApi.Security.Admin.GetUser(si, si.UserName)
objUserInfo.User.Text4 = "Setyour value"
Brapi.ErrorLog.LogMessage(si, objUserInfo.User.Text4)
Thanks, Omkareshwar
Archetype Consulting
- ChristianW
  Valued Contributor
  2 years ago
  You can also try using:

  BRApi.State.GetUserState BRApi.State.SetUserState
Omkareshwar
Contributor II
2 years ago
You can also create an Ancillary table to store the parameter selection for each user. And fetch those values in your dashboard with this approach you can also save pervious selections made by the user.
You can opt for any of the approach mentioned the Ancillary table is the preferred one, but it is complex where as |UserText4| is simpler and quickest to implement.
- ckattookaran
  VIP
  2 years ago
  I wouldn't recommend storing parameters in tables. That is what session variables are for. Please do not create tables when you can use existing functionality.
fc
New Contributor III
2 years ago
It finally works! The problem was that the popup came out every time the dashboard refreshed, thus every time this section of the script was triggered:
Case Is = DashboardExtenderFunctionType.LoadDashboard
If args.FunctionName.XFEqualsIgnoreCase("LoadFunction") Then
.....
End If
I managed to avoid the pop up to come out by adding a couple of lines of code:

Case Is = DashboardExtenderFunctionType.LoadDashboard
If args.FunctionName.XFEqualsIgnoreCase("LoadFunction") Then

loadDashboardTaskResult.ChangeCustomSubstVarsInDashboard = True

If Not(args.LoadDashboardTaskInfo.CustomSubstVarsFromPriorRun.XFGetValue("p_RowEntityList").Equals("None")) Then

loadDashboardTaskResult.ModifiedCustomSubstVars.Add("p_RowEntityList", args.LoadDashboardTaskInfo.CustomSubstVarsFromPriorRun.XFGetValue("p_RowEntityList"))
loadDashboardTaskResult.ModifiedCustomSubstVars.Add("p_RowAccList", args.LoadDashboardTaskInfo.CustomSubstVarsFromPriorRun.XFGetValue("p_RowAccList"))
loadDashboardTaskResult.ModifiedCustomSubstVars.Add("p_RowDocList", args.LoadDashboardTaskInfo.CustomSubstVarsFromPriorRun.XFGetValue("p_RowDocList"))

Return loadDashboardTaskResult

Else

loadDashboardTaskResult.ModifiedCustomSubstVars.Add("p_RowEntityList", "None")
loadDashboardTaskResult.ModifiedCustomSubstVars.Add("p_RowAccList", "None")
loadDashboardTaskResult.ModifiedCustomSubstVars.Add("p_RowDocList", "None")

Return loadDashboardTaskResult

End If
End If

The rest of the script is structured as Rob suggested.
Thank you all for the help!
- ckattookaran
  VIP
  3 months ago
  Hmm, that is an interesting solution. However, have you tried adding a supplied parameter on the main dashboard? That should solve the issue of it asking for the parameter value when a dialog box is open. You don't need to use the load dashboard event to do this.
  - GregHertling
    New Contributor III
    2 months ago
    Hi, I am having the same issue with the pop up box for the parameters. I have 6 combo boxes on a dashboard. 5 selecting parameters and one selecting a column set for cube views. The parameters are used in two different cube views on the dashboard. Every time I open the dashboard or make a selection on one of the cb's, the pop up appears showing all of the parameters. I don't quite understand the "adding a supplied parameter on the main dashboard" All combo boxes are triggering the same DE BR.
    Below is the code. Any help is appreciated.
    Else If (args.FunctionName = "SetCorpVolAdjParams") Then
    Dim UD1Report As String = "Top.Base"
    Dim UD2Report As String = "Top"
    Dim UD3Report As String = "Top"
    Dim UD4Report As String = "Top"
    Dim EntitySelect As String = args.TaskInfo.CustomSubstVars("prm_Entity_Select")
    Dim MonthlyYearlySelect As String = args.TaskInfo.CustomSubstVars("prm_Monthly_Yearly_Select")
    Dim CVname As String = Nothing
    If MonthlyYearlySelect = "Monthly" Then
    CVname = "IBP_PeriodicAdj_Col"
    ElseIf MonthlyYearlySelect = "Yearly" Then
    CVname = "IBP_AnnualAdj_Col"
    End If
    Dim UD1Select As String = args.TaskInfo.CustomSubstVars("prm_UD1_Select")
    If Not UD1Select.Contains("Disagg") Then
    UD1Report = UD1Select
    End If
    Dim UD2Select As String = args.TaskInfo.CustomSubstVars("prm_UD2_Select")
    If Not UD2Select.Contains("Disagg") Then
    UD2Report = UD2Select
    End If
    Dim UD3Select As String = args.TaskInfo.CustomSubstVars("prm_UD3_Select")
    If Not UD3Select.Contains("Disagg") Then
    UD3Report = UD3Select
    End If
    Dim UD4Select As String = args.TaskInfo.CustomSubstVars("prm_UD4_Select")
    If Not UD4Select.Contains("Disagg") Then
    UD4Report = UD4Select
    End If

    Dim selectionChangedTaskResult As New XFSelectionChangedTaskResult()
    selectionChangedTaskResult.IsOK = True
    selectionChangedTaskResult.Message = String.Empty
    selectionChangedTaskResult.ShowMessageBox= False
    selectionChangedTaskResult.ChangeCustomSubstVarsInDashboard = True
    selectionChangedTaskResult.ModifiedCustomSubstVars.Add("prm_EntitySelectionValue_Form", EntitySelect)
    selectionChangedTaskResult.ModifiedCustomSubstVars.Add("prm_EntitySelectionValue_Report", EntitySelect)
    selectionChangedTaskResult.ModifiedCustomSubstVars.Add("prm_Monthly_Yearly_SelectionValue_Form", CVname)
    selectionChangedTaskResult.ModifiedCustomSubstVars.Add("prm_UD1SelectionValue_Form", UD1Select)
    selectionChangedTaskResult.ModifiedCustomSubstVars.Add("prm_UD1SelectionValue_Report", UD1Report)
    selectionChangedTaskResult.ModifiedCustomSubstVars.Add("prm_UD2SelectionValue_Form", UD2Select)
    selectionChangedTaskResult.ModifiedCustomSubstVars.Add("prm_UD2SelectionValue_Report", UD2Report)
    selectionChangedTaskResult.ModifiedCustomSubstVars.Add("prm_UD3SelectionValue_Form", UD3Select)
    selectionChangedTaskResult.ModifiedCustomSubstVars.Add("prm_UD3SelectionValue_Report", UD3Report)
    selectionChangedTaskResult.ModifiedCustomSubstVars.Add("prm_UD4SelectionValue_Form", UD4Select)
    selectionChangedTaskResult.ModifiedCustomSubstVars.Add("prm_UD4SelectionValue_Report", UD4Report)
    Return selectionChangedTaskResult

New Contributor III

2 years ago

It works now! Thank you all for the help.
The problem seemed to be that I was not embedding the parameter in any of the components that are present in the dashboard like Christian suggested.
After embedding the 3 parameters in 3 different Label components and placing the Label components anywhere within the dashboard, the process started working as supposed, and the parameters are now correctly populated.
One last thing, though, is that now every time the dashboard is refreshed, a popup window appears showing the current value assigned to each of the 3 parameters:

I believe that's because the parameters are Input parameters.

Is there a way to get rid of it?

RobbSalzmann

Valued Contributor II

2 years ago

Something isn't getting set in the BR. This is tricky to troubleshoot. If all params are set in the BR, you should not get this dialog. Sometimes its a misspelling or param in the wrong place or forgetting something in the code. Post your BR code if you want a second set of eyes on it.

New Contributor III

2 years ago

Public Function Main(...arguments...) As Object
 Try

 Select Case args.FunctionType

    Case Is = DashboardExtenderFunctionType.LoadDashboard
          If args.FunctionName.XFEqualsIgnoreCase("LoadFunction") Then
               .....
          End If

    Case Is = DashboardExtenderFunctionType.ComponentSelectionChanged
          Dim selectionResult As XFSelectionChangedTaskResult=Nothing

          If args.FunctionName.XFEqualsIgnoreCase("LaunchAdjustment") Then
               ...
               selectionResult=Me.AdjustmentProcessMain(...arguments...)
               Return selectionResult
          End If
      End Select
 Return Nothing

Catch ex As Exception
Throw ErrorHandler.LogWrite(si, New XFException(si, ex))
End Try
End Function


 Private Function AdjustmentProcessMain(..arguments..) As XFSelectionChangedTaskResult
    Try
              Dim selectionChangedTaskResult As New XFSelectionChangedTaskResult()
              selectionChangedTaskResult.ChangeCustomSubstVarsInDashboard = True
              ...
              Dim paramchange As New XFselectionchangedtaskresult()
              paramchange = Me.AssignOutputParams(si)     'This is the function within which the parameters are assigned a value
              .....

              Dim Checkresult As String = "... string that pops up when process completed..."
              Dim messageresult As New XFselectionchangedtaskresult()
              messageresult = Me.ShowMessage(si,Checkresult)
              selectionChangedTaskResult.IsOK = messageresult.IsOK
              selectionChangedTaskResult.ShowMessageBox = messageresult.ShowMessageBox
              selectionchangedtaskresult.Message = messageresult.Message
              selectionChangedTaskResult.ModifiedCustomSubstVars = paramchange.ModifiedCustomSubstVars

           Return selectionChangedTaskResult

 Catch ex As Exception
 Throw ErrorHandler.LogWrite(si, New XFException(si, ex))
 End Try
 End Function


 Private Function AssignOutputParams(ByVal si As SessionInfo) As XFSelectionChangedTaskResult
    Try
         Dim selectionChangedTaskResult As New XFSelectionChangedTaskResult()
         Using
                ... define variables to be assigned to parameters ...
         selectionChangedTaskResult.ModifiedCustomSubstVars.Add("p_RowEntityList",Entity_Param_List)
         selectionChangedTaskResult.ModifiedCustomSubstVars.Add("p_RowAccList",Acc_Param_List)
         selectionChangedTaskResult.ModifiedCustomSubstVars.Add("p_RowDocList",Doc_Param_List)

         End Using
     Return selectionChangedTaskResult

 Catch ex As Exception
 Throw ErrorHandler.LogWrite(si,New XFException(si,ex))
 End Try
 End Function

 Private Function ShowMessage(...arguments...) As XFSelectionChangedTaskResult
    Try
        Dim selectionChangedTaskResult As New XFSelectionChangedTaskResult()
        selectionChangedTaskResult.Message= StringHelper.FormatMessage("...message string...")
        'Show Message box that the file was processed
        selectionChangedTaskResult.IsOK=True
        selectionChangedTaskResult.ShowMessageBox= True
     Return selectionChangedTaskResult

 Catch ex As Exception
 Throw ErrorHandler.LogWrite(si,New XFException(si,ex))
 End Try
 End Function

I copied here the relevant parts of the BR.
The function that is triggered when the user clicks on the button is AdjustmentProcessMain, within it the function AssignOutputParams is called, and that is where the parameters are assigned a value.

Thanks again for the help, much appreciated!!

skm
New Contributor
3 months ago
In our use case, was trying to pass the select row from sql table to the cube view below, I had to set the parameters of type input value using the

XFSelectionChangedTaskResult

and then create a supplier parameter and assign to each dashboard component in the dashboard tree to be able to access the values from sql table to cube view.
- ckattookaran
  VIP
  2 months ago
  I made an ugly dashboard to check what you are saying.

  My combo boxes use two parameters, and my cube view uses the same parameter.

  It never asked me for a param. So not sure what your setup is.

Forum Discussion

Literal parameters and multiple users

Related Content

Dashboard: Get or Set Literal Parameter

Parameters

Literal parameter : issue with unbalanced [ or ] in the text being input

Parameter for SQL

FdxExecuteCubeView parameters
