Retrieve App Names from Development Environment via Business Rule

Hi, as the title suggests, I'm looking for a way to pull a list of all app names that reside within our Development environment. I know the Snapshot report provides this (but BR are encrypted), but I was wondering if there's a BR way to achieve it.

Here is a snippet of what I was attempting to. Please feel free to critique or provide suggestion. Thank you!


Dim brapi As BRApi = CType(api, BRApi)
Dim dbConnFramework As DbConnInfo = brapi.Database.CreateFrameworkDbConnInfo(si)

Using dbConnFramework

Dim connectionlink As String = si.WebServerUrlUsedByClient
'Here I was trying to access the environment DB which I believe holds the records
    Dim sql As String = "SELECT AppName FROM dbo.App ORDER BY AppName"

    Dim sb As New StringBuilder()
    sb.AppendLine("----------- OneStream Applications in Dev ---------")
    sb.AppendLine("")

    Dim rowCount As Integer = 0

    Using dt As DataTable = brapi.Database.ExecuteSql(dbConnFramework, sql, True)
        If dt.Rows.Count = 0 Then
            sb.AppendLine("No applications found.")
        Else
            For i As Integer = 0 To dt.Rows.Count - 1
                sb.AppendLine((i + 1).ToString() & ". " & dt.Rows(i)("AppName").ToString())
            Next
        End If
        rowCount = dt.Rows.Count
    End Using

    sb.AppendLine("")
    sb.AppendLine("Total Applications: " & rowCount)

    Throw New XFUserMsgException(si, "", "", connectionlink.ToString())
End Using




  • Hi carbon​

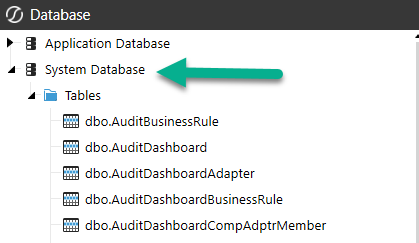

    To check which Database Table you need, I would recommend checking System->Database in OneStream, first.

    In your example dbo.App is not a real table that actually exists in the Framework (FW) Database (be careful with using CoPilot for OneStream specific code).

    For reference, this is the Framework database and we can reference tables and their contents from here.

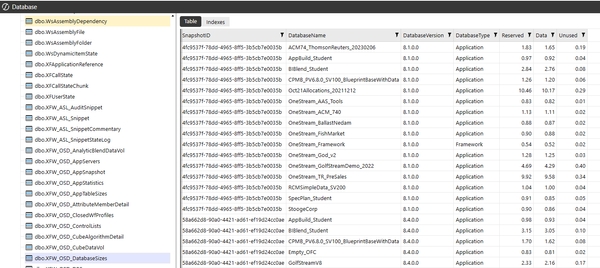

    If we take your OSD example, as you have this installed, there is a table here called [dbo].[XFW_OSD_DatabaseSizes], but if we take a look at this table, we have multiple instances of the same Database Name e.g. AppBuildStudent (in my example below)















    Therefore it is safer to write a DISTINCT SELECT statement to this table to retrieve the unique DatabaseName(s) for your environment (the FW database is environment-wide)

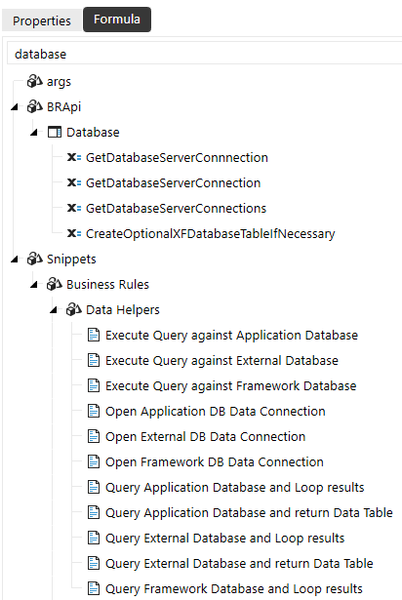

    There are snippets available on how to create database connections to App, Framework and external databases, correctly

























    So if we take your original example and refactor based on the information above, we get something like this; which gives you the correct result (and does not error)

    ' Declare StringBuilder
    Dim sb As New Text.StringBuilder()
    ' Declare SQL
    Dim sql As String = "SELECT DISTINCT [DatabaseName] FROM [dbo].[XFW_OSD_DatabaseSizes] ORDER BY [DatabaseName]"
    'Open connection to Framework database
    Using dbConnFW As DBConnInfo = BRApi.Database.CreateFrameworkDbConnInfo(si)
    	Using dt As DataTable = BRAPi.Database.ExecuteSql(dbConnFW, sql, True)
    		If Not dt Is Nothing Then
                For Each dr As DataRow In dt.Rows
                    'Process rows
                    sb.AppendLine(dr("DatabaseName"))
                Next
    		Else
    			sb.AppendLine("No applications found.")
            End If
    	    sb.AppendLine(String.Empty)
    	    sb.AppendLine($"Total Applications {dt.Rows.Count}")
    		Throw New XFUserMsgException(si, String.Empty, String.Empty, sb.ToString())
    	End Using
    End Using

    Hope this helps

    Sam

6 Replies

  • rhankey's avatar
    rhankey
    Contributor III

    I am unware of any App table in the Framework DB.  Change your SQL query to the following:

    SELECT TextValue FROM ServerConfig WHERE ItemName1='ApplicationName'

  • sameburn's avatar
    sameburn
    Icon for OneStream Employee rankOneStream Employee

    Hi carbon​

    To check which Database Table you need, I would recommend checking System->Database in OneStream, first.

    In your example dbo.App is not a real table that actually exists in the Framework (FW) Database (be careful with using CoPilot for OneStream specific code).

    For reference, this is the Framework database and we can reference tables and their contents from here.

    If we take your OSD example, as you have this installed, there is a table here called [dbo].[XFW_OSD_DatabaseSizes], but if we take a look at this table, we have multiple instances of the same Database Name e.g. AppBuildStudent (in my example below)















    Therefore it is safer to write a DISTINCT SELECT statement to this table to retrieve the unique DatabaseName(s) for your environment (the FW database is environment-wide)

    There are snippets available on how to create database connections to App, Framework and external databases, correctly

























    So if we take your original example and refactor based on the information above, we get something like this; which gives you the correct result (and does not error)

    ' Declare StringBuilder
    Dim sb As New Text.StringBuilder()
    ' Declare SQL
    Dim sql As String = "SELECT DISTINCT [DatabaseName] FROM [dbo].[XFW_OSD_DatabaseSizes] ORDER BY [DatabaseName]"
    'Open connection to Framework database
    Using dbConnFW As DBConnInfo = BRApi.Database.CreateFrameworkDbConnInfo(si)
    	Using dt As DataTable = BRAPi.Database.ExecuteSql(dbConnFW, sql, True)
    		If Not dt Is Nothing Then
                For Each dr As DataRow In dt.Rows
                    'Process rows
                    sb.AppendLine(dr("DatabaseName"))
                Next
    		Else
    			sb.AppendLine("No applications found.")
            End If
    	    sb.AppendLine(String.Empty)
    	    sb.AppendLine($"Total Applications {dt.Rows.Count}")
    		Throw New XFUserMsgException(si, String.Empty, String.Empty, sb.ToString())
    	End Using
    End Using

    Hope this helps

    Sam

    • carbon's avatar
      carbon
      New Contributor III

      Thank you, Sam.

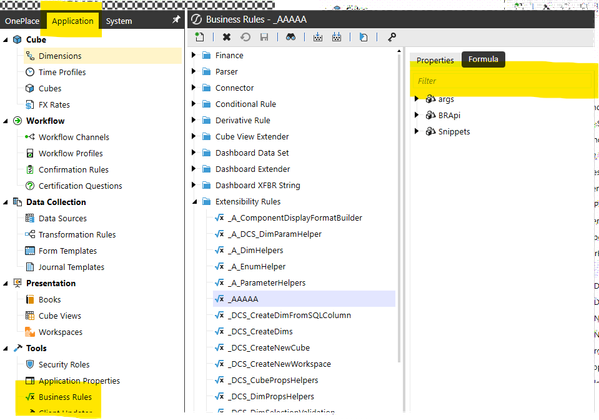

      Could you please show me where to find the snippets? Are they located within the Business Rules?
