Matrix Consolidation: Eliminating Beyond Legal Entity
Purpose of the document To goal of this document is to share our experience in designing for a matrix consolidation requirement, as well as to drive discussion on the topic. What we mean by “matrix consolidation” Matrix consolidation is a term commonly used when finance teams want to prepare their management & statutory financials concurrently. This prevents the need to maintain separate scenarios and processes in the system. It will usually involve running eliminations on something more than just legal entity. In OneStream this can mean using a user defined dimension as part of the elimination process. The Requirement A common use case is to run eliminations between Profit Centres or Segments. Whilst inter-profit-centre eliminations will be used as the example in this document, it is not the only potential use case. The requirement we will attempt to solve for is that the customer wants an elimination to only occur at the first common parent in both the Legal Entity and Profit Centre hierarchies. First let’s look at the two broad ways in which this can be achieved. ENTITY DIMENSION OR USER DEFINED (UD) DIMENSION So, there is a requirement to do eliminations on a level of detail below the legal entity/company code level. The example we will use in the section is where the customer wants to generate eliminations between Profit Centres (PC). You have two main options on how to tackle this, outlined in the following two sub-sections. OPTION 1: ENTITY DIMENSION Include this Profit Centre detail in your entity dimension as base members. These will be children of the legal entity members. OPTION 1: ENTITY DIMENSION Include this Profit Centre detail in your entity dimension as base members. Pros Cons Business Logic · No additional Logic required to get eliminations running by Profit Centre. · Impacts consolidation performance more than option 2 in a typical setup, due to multiplication of members in the entity dimension (i.e. more data units) that are to be consolidated. Exact impact need to be analysed in each project. · If you move a PC in the entity hierarchy, you will need to reconsolidate all history. Dimensions · Uses fewer UD dimensions than option 2. · Generally, only appropriate when Profit Centres are unique to entities, since otherwise they will need to be duplicated for each entity. · Can end up with a very large entity dimension · To achieve some reporting, alternative entity hierarchies (and therefore additional consolidations) may be required. · Often leads to creation of additional “dummy” or “journal” Profit Centre entities to contain data that doesn’t need to be captured by Profit Centre (e.g. Balance Sheet Data). This creates even more entities to be consolidated! · When Profit Centres are not unique to entities, shared Profit Centres will create lots of duplicate entities and should be avoided. · Less flexible since profit centres need to be created & moved within the entity hierarchy. Workflows · If the responsibility structure (and therefore workflow design) is by Profit centre, then can make workflow design/build better. · If the responsibility structure is not based around Profit Centre, more entities will need to be assigned and considered in workflow design. · Makes Profit Centres the basis for everything where data is stored, processed and locked. Reporting & Matching · May align with the way it was done in legacy systems, so users are familiar with the approach. · Standard IC matching reports will work for Profit Centre matching (although this requirement is less common from our experience). · Out-of-the-box matching will now only be at PC level. Legal Entity matching will require custom reporting. · Alternative entity hierarchies (and therefore consolidations) may be required to achieve some reporting. · Execution of consolidation required to see legal entity level data (as they will be parent entities) Security · Native using the entity dimension. · Requires maintenance on a Profit Centre level even if not required on that level. OPTION 2: USER DEFINED DIMENSION Create a Profit Centre dimension in a UD. OPTION 2: USER DEFINED (UD) DIMENSION Include the Profit Centre detail in a User Defined Dimension Pros Cons Business Logic · Logic can be customised to specific requirements. · Does not add additional members to the entity dimension (i.e. data units), which is beneficial for consolidation performance in a typical setup. · Running a consolidation, will run a statutory and management consolidation in parallel. · Requires additional development time for business logic if not part of a starter kit. Dimensions · A cleaner entity dimension to support legal entity and group reporting. · Matrix view of consolidation can be created (e.g. with entities in rows and Profit Centres in columns) · Can be combined with extensibility if Profit Centres aren’t applicable to all entities/divisions. · Requires the use of two UD dimensions (one for Profit Centre and another for PC counterparty). This is discussed later. Workflows · Often more closely aligns with the responsibility structure for Actuals (by legal entity). Reporting & Matching · Standard IC matching reports will support legal entity matching. · Consolidation not required to view total legal entity values (pre-elimination data) · Custom IC matching reports may be required for Profit Centre matching. This is less common as a requirement. Security · Native using the entity dimension if security is driven by Legal Entity. · Requires slice security (via Cube Data Access security) if required at Profit Centre level (can impact reporting performance if security is complex). Other Design Considerations Data quality of matrix counterpart – Remember, all intercompany data from the source system needs to be sourced for all matrix dimensions. It will negatively impact user experience if this data is not readily and accurately available in the source system (lots of manual input will be required). Stability of the matrix dimension – This is to say, in your situation, will the Profit Centre hierarchy change regularly with relationships changing? This requires significant consideration in the design phase. Some discussion points are included in a later section. New or existing application – The choice of solution may depend on whether this is a new implementation or an addition to an existing one. It will likely be easier to add a new UD to an existing application rather than re-develop the entity dimension! Performance – Common design considerations of performance, data unit sizes, number of data units etc. apply. Elimination vs. Matching – Remember that just because a customer wants their eliminations to happen on PC doesn’t mean that they need to do their month end intercompany matching at this level. It’s important to clarify this as two separate requirements during gathering. Workflow – Ensure you consider the responsibility structure of the organisation as this will have a big impact on the decision. If the true process (loading, locking, calculating & certifying the data) is by Profit Centre, then this could be a good justification for using the Entity dimension (option 1). However, it’s much more typical that these are based on legal entity for Actuals, making a UD solution (option 2) more appropriate. Option Overview The best approach will vary depending on the specific requirements, but the above gives some common indications of the benefits & drawbacks of each approach. Adding members to the entity dimension creates additional overhead during consolidation since the system must run the data unit calculation sequence (DUCS), consolidate and check the status on each entity member. Therefore, including profit centre in the entity dimension will often be slower than using a UD (in the presence of typical data volumes, exceptions always apply!). Regardless of the approach, remember that with the default eliminations always occur at the first common parent in the Entity dimension. If the client wants something different, then you would be looking at a “non-matrix” solution (i.e. separate cubes for statutory and management). But that is a different topic… Since option 1 mostly uses system-default logic for processing and eliminating the data, the setup is mostly straight forward. Therefore, the rest of the document focuses on how to design for Option 2, using a user defined dimension to contain this detail and run eliminations. Out of the Box - view of Eliminations It is worth stating that just because a client says “we need the eliminations to run by profit centre” doesn’t mean that they need to implement a full matrix consolidation solution. If they don’t need the profit centre elimination to happen at the first common parent in the PC hierarchy, then the out of the box eliminations will suffice as you can report the eliminated data simply by selecting the correct combination of members (Origin, PC, etc.). For those less familiar with the topic, let’s just take a moment to set up a simple example that shows the default behaviour of eliminations in OneStream. We have a Profit Centre dimension in UD1, and an entity dimension for the legal entity members as follows (all entities are using USD only & are 100% owned, for the sake of a simple example): There is an intercompany transaction between the legal entities Manchester & Houston: Within Manchester it is captured within the Finance PC, and within the Houston Sales PC. When out-of-the-box eliminations are run, we will see the following results (eliminations in red, consolidated results in the blue box): The eliminations occur at the first common parent in the entity dimension (in this case the first common parent is the Main Group). In the UD1 the eliminations happen on the same member as the original data, so at the group level we still see the plug amounts by Profit Centre. If we zoom into the Profit Centre dimension (UD1) at the top Main Group reporting entity member, we see the following, where 100 is the aggregated difference on the plug account of the two base level Profit Centres Finance1 and Sales1: Matrix Consolidation - View of Eliminations Now let’s imagine we have the same setup but want to apply matrix consolidation. We have the same data, but now we are capturing the Counterpart Profit Centre for each transaction: Notice how in the below screenshot our eliminations will be happening on a new “elimination member” within UD1, rather than the member the data sits on (highlighted in the green boxes below; the required elimination members are discussed further in the next section on the setup). The member where the elimination occurs represents the first common parent of the PC & Counterparty PC in the hierarchy (in our example this is the “Top_PC” member in UD1). Again, if we look at this result in more detail at the Main Group entity level, you can now see that within the UD1 hierarchy, the elimination doesn’t occur until the first common parent in the UD dimension. So, at “Top_PC” the data is eliminated, but at descendant UD1 members, it is not (e.g. Admin_PC, Finance_PC, Sales_PC). Note that we have the same result at the Top Profit centre and Group entity, but the way we get there is different. Now that we understand the situation we are trying to tackle, let’s look at the setup used in this example. Setup The following items are configured in our matrix consolidation example. Entity No changes are required to the entity dimension for matrix consolidation. Account No changes are required to the account dimension for matrix consolidation. We will use the same plug accounts. UD1 – Profit centre Some additional elimination members are required in our UD1 as follows. Whilst UD1 is used in our example, the usual design decisions apply to which UD you use. These new elimination members will be required at every point an elimination may happen, so you can see that this can potentially add a large number of members to your existing hierarchy. A common naming convention is often used to allow the system to derive where to post the elimination. In this case you can see it is the parent member name with a prefix of “Elim_”. Alternatively, you could use text fields to store this information. Either way, the logic will rely on this being updated accurately and consistently. Tip: Ensure your consolidation logic provides helpful error messages if it finds that an elimination member does not exist or is misconfigured. UD7 - NEW Counterparty PROFIT CENTRE A new dimension is needed to capture the counterparty Profit Centre information. Like the Intercompany dimension in OneStream, this can be (and almost always is) a simple flat list of the base counterparties. All relevant intercompany data now needs to be analysed by this dimension so input forms & transformation rules will need updating. In data models where (almost) all UDs are already in use, this element can be challenging and requires consideration. Whilst UD7 is used in our example, the usual design decisions apply to which UD you use. Remember that this dimension is simply used to capture the counterparty so if your design is already using lots of dimensions then you may be able to combine this with other supplementary data, or maybe even use UD8 (although this will need additional consideration in your dynamic reporting design). Tip: Consider how this dimension will be maintained going forwards as it will be important for the logic that all members exist with the same naming in this counterparty dimension. Consider if the counterparty dimension could/should be automated to align with the main PC dimension. Business Logic Since, unlike the entity dimension, all parents in a UD are calculated on-the-fly this approach will require additional eliminations to be calculated. You will need to store your new matrix consolidation logic somewhere; in our case it is a business rule attached to the cube, but it could also be attached to a member formula: Tip: You DO NOT need to switch on custom consolidation algorithm on the cube to achieve a matrix consolidation result. Always consider the wider requirements & design. Reporting Custom reports will need to be developed to allow users to do IC matching and report on the resulting eliminations meaningfully. If the customer already does their elimination like this, they should have existing specifications that can be designed for. But if not, end users will need to understand Matrix consolidation when they build their own reports/Quick Views or just run LE-based reports with “Top” for Profit Centres. Tip: You can use Data Set business rules to help you efficiently gather your data for interactive dashboard & reports. Business Logic Consolidation Algorithm When a matrix consolidation requirement exists, it has been commonly observed that consultants will switch on the Custom Consolidation algorithm on the relevant cube(s). However simply because this stores the Share data, this has a negative impact on consolidation performance, and database size. Before you reach for the Custom algorithm though, I would recommend considering calculating the matrix elimination adjustments during the calculation pass of C#Elimination, within a UD member (potentially within your data audit dimension). This will allow you to remain on the Standard or Org-by-Period algorithm and within this member you can update the standard eliminations with the PC detail. Of course, you may have other requirements that lead to you using the Custom algorithm, in which case the approach for matrix eliminations can be determined in the context of the overall design. Tip: Consider whether matrix eliminations are required for all processes & scenarios and ensure it is only running on those where it is truly required. Useful Snippets The general approach for writing a matrix consolidation rule is to check that the elimination only occurs at the first common parent – other than that it will follow standard OneStream rule writing techniques such as using data buffers. The following functions can be useful (comments correct as of version 8.5): Function Comment api.Members.GetFirstCommonParent() You will want to use this function to check both the entity and profit centre parents to see if they’re common to the IC or counterparty member. api.Members.IsDescendant() Note that this doesn’t check whether a descendant has a consolidation percentage greater than zero. So, if doing org-by-period this may need additional consideration. api.Entity.PercentConsolidation() Useful for checking whether entity is being consolidated. Ensure you only pass valid parent/entity combinations into the function. Example rule Attached to this paper you will find a sample rule that can be used as a starting point to implement matrix consolidation. Disclaimer: The provided rule is an example only, and its purpose it to demonstrate an approach that can be taken. If used as a starting point, then all care should be taken to adapt and thoroughly test it before implementation. Updates may be made, without notice, to the example in future. Whilst there are arguably different ways to approach this, the example takes the following approach: Retrieves a data buffer of the system generated eliminations. Reallocates the elimination (both IC & Plug account entry) to the correct PC. Reverses lower-level eliminations from current eliminations (without this step the process will repeat at each parent after the first common parent). Clears the system Elimination as “No Data”. Save Results. This should be assigned to the cube when using the standard or org-by-period consolidation algorithm. It reallocates the out-of-the-box eliminations to the relevant UD member. With some quick reconfiguration of the dimensions & names referenced in the rule, it should work with the setup described in the previous section. org-by period in the UD With regards to matrix consolidation, I have previously been asked the following question: “What happens to the eliminations if we change our Profit Centre structure?” Well in our Entity dimension, we have built in tools to handle org-by-period, so that entities can have relationship properties vary by time period. Data is also stored on parent entities which aids in this org-by-period. Within our UD, no such functionality exists, so if I move a member, that member is moved for all history. If I duplicate a member, the values are duplicated (depending on the aggregation weight of course, but keep in mind that this cannot be varied by time!) So how can we approach this is when a Profit Centre needs to change parents one month: Change the main hierarchy – The old view will no longer be visible. The added complexity is that the eliminations for prior periods will occur in the “wrong” place in the UD hierarchy from a historical point of view unless a consolidation is rerun on all those periods. Of course, if you rerun the consolidation on prior periods, then all your results will change (although not at the top level provided nothing else has changed). This implies that the elimination will correctly display the elimination after the change; Historical data will not be kept for the re-consolidated periods. Create alternate hierarchies (e.g. Top_2023, Top_2024 etc.) – New hierarchies can be created, with unique parents that will allow the old hierarchy to be preserved. As with the first option, re-consolidation of prior periods will be required to view historic data in the same format. However, if the data is only required in the new format going forwards then re-consolidation of prior periods can be avoided. Tip: For every alternate hierarchy in which you run your matrix eliminations, the eliminations will be “duplicated”. Therefore, your business logic should allow you to configure, by time period & scenario, which hierarchies are eliminated to ensure only necessary calculations are run. This could be done, for instance, through tags on text fields of the members. Whilst not such a common scenario, it is a consideration worth making during the requirements gathering & design.Calculate if No Data
Have you ever wondered how the Calculate if No Data setting works? (I did, and Keith Berry helped me out) “Calculate if No Data = False” prevents the execution of rules on “OK,NA” (no data) entity. However, the Calc Status gets changed from “OK,NA” to “OK”, and it impacts the parent (“CN”). The “False” option is to avoid populating unused entities with rules. Calculate on “OK,NA” Force Calculate on “OK,NA” Calculate if No Data = True No rule execution No change in Calc Status Rule is run Calc Status changes to “OK” Parent becomes “CN” Calculate if No Data = False No rule execution No change in Calc Status No rule execution Calc Status changes to “OK” Parent becomes “CN”Translating or Converting Units or Volumes
Often global companies may report a metric like units sold or volumes in a stat account. But that unit of measure may vary by region or country. Below is one option for handling the conversion of stat accounts like units sold or volumes. For example: Metric Ton to US Ton Kilograms to Pounds Liters to Gallons Etc Here are some high level ways to tackle this in an application. Considerations: Entities are tagged with currency already Normal Revenue/Expense account types will naturally get “AverageRate” table PVA method (all else equal) Normal Assets/Liability account types will naturally get “ClosingRate” table VAL method (all else equal) You need to identify which accounts (aka UNITSSOLD) need a translation rate table that differs You need to identify which entities are sending which volumes to drive translation to use different rate table Your conversion rates do not vary over time so you really just need to store these rates once in the application for all time periods: KilogramRate (store conversion rate to go from kilograms to pounds) MetricRate (store conversion rate to go from metric tons to US tons) LiterRate (store conversion rate to go from liters to gallons There are a few different options for storing these conversion rates: LOOKUP table under transformation rules section Preferred method Stores once in app that will come out with app extract file Can be referenced in TransformText api to grab rates during conversion Custom table in the app Stored once in app but must be recreated with each app copy or new app FX rate tables pertaining to these elements Leverages standard place for rate but since these rates do not vary over time, you would have to load these conversion rates to all time periods into eternity Account that is balance recurring that stores these conversions in E#None:C#None to be used across all entities Leverages standard place but again, having to store these rates by time period into eternity Does not come out with app extract since it is data Set up accounts as follows: Tag various volume or units accounts as type “Revenue” so that they will get translation Use Text# on account to drive the rate table being used so that it does not use “AverageRate” but instead goes to one of the 3 new rate tables that you set up as: LOOKUP table (preferred method), Custom table, FX Rate table or Account Set up entity as follows: Use Text# on entity to differentiate what unit of measure is being sent This may not be needed if you can direct into different accounts upon load Set up cube as follows: Translation Algorithm Type = Standard Using Business Rule for FX Rates In this Finance BR just isolate list of accounts that need other than standard translation, e.g. focus on handful of volume accounts that should use one of the new unit conversion FX rate tables All else can be standard translation (all else equal)
usage of Aggregated member from Consolidation dimension
At the moment the Aggregated member uses the IsConsolidated property to aggregate or not. Do I have any option if I wanted to aggregate a member but not consolidate it? With the introduction of the new member Aggregated, is there going to be a IsAggregated property created or will it always work with the IsConsolidated property? ThanksHow to Run Workspace Assembly from a Data Management Step In 6 Easy Steps
This was originally a question.It took a while to figure out, so to save someone else the hours of trial and error, here is the process I use in detail, start to finish, to run a Workspace-based Data Management step in a Workspace Assembly business rule. Here's a How-to step by step: List of abbreviations used below: DM: Data Management WS: Workspace MU: Maintenance Unit BR: Business Rule AS: Assembly 1. Workspace:Set the NameSpace Prefix - this is what gets filled in at runtime for __WSNameSpacePrefix 2. Assemblies: Note these properties 3. Create the Assembly Business Rule:Create an "Extender" business rule, this is done by right clicking files and selecting "Extensibility Rules" Add some test code, to verify correct configuration, such as BRApi.ErrorLog.LogMessage(si, "Hello from the new extender!"then code the way you would any other extender 4. Create The Data Management Group: Create a DataManagement Group in the same workspace that the Assembly that has your business rule is in 5. Create a Data Management Step - Create a DM step in the new DM Group, reference the rule using the pattern: Workspace.{WorkspacePrefix}.{AssemblyName}.{BusinessRuleName} In this case it would be: Workspace.Current.DMTestAS.DMTestStepExtender Note: we could also use 'DMTestWS' instead of 'Current'.We use Current because the DM Step is in the same WS as the Extender Rule. 7. Done! Test the DM Step with run button and check the error log(System Tab -> Logging -> Error Log),for your test code's output.
Cube Properties Best Practices!
Given a situation, determine the correct properties for the Cube. Certification Exam. Workflow The most common setting Is Top Level Cube for Workflow (Main Cube) = True Project requirements dictate Suffixes for varying Workflow by Scenario Type Assigning Suffix by Scenario Type allows the same Entity to be assigned to different Workflows in different Workflow Cube Root by Scenario Type The best practice is to configure a suffix early on for common Scenario Types regardless of whether they get used. NOTE: These settings cannot be updated once data is loaded to a specific Scenario Type. Leaving blank is defining the suffix as well. Calculation Consolidation and Translation Algorithm Type Most common setting = Standard Settings based on design decisions on how consolidation and translation to be customized. Recommendation – Only change from Standard to Custom on sporadic cases. Elimination and Translation logic should be done either on the Member using O#Elimination or C#Elimination or using Translate as part of the Finance Business Rule and assigning it to Cube. Use Standard Using Business Rules for FX Rates for Translation Algorithm Type in the above case. Calculation Properties: Business Rules Cube Properties: FX Rates Cube Properties: Set Default Currency FX Rates for the Cube. The most common settings for the Cube are shown in the screenshot. Default Currency is dependent on the currency of the application. NOTE: Triangulation is dependent on default currency Best Practice – Control the FX Rates by Scenario. Deep dive of FX Rates discussed during setting Scenario settings. For more - OneStream Certified Professional (OCP) – Lead Architect Certification Prep Webinar in Navigator.Performance Decisions - Dynamic Vs. Stored Calculations

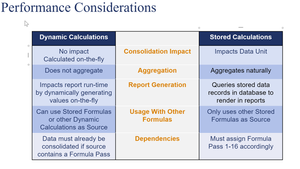

💎 OneStream consultants and administrators must make the correct decisions during the design phase of YOUR project. Top on the list: Deciding which one (Dynamic or stored Calculations) to use is a fundamental consideration of a project. Dynamic Calculations are an in-memory calculation that runs on demand (when necessary). Stored Calculations are calculations that run as part of the Data Unit Calculation Sequence (DUCS). All alternatives should be considered before storing calculated values in the application. Dynamic Calculations do not store a value in the cell. Instead, a numerical value calculates and displays when the Member is referenced. Stored Calculations result in data records and data cells being stored in a database table. For further details: OneStream Foundation Handbook and Implementing OneStream course. Exam QUESTION: What are the three ways to run Calculations? Cube View cells Workflow Process task Data Management Jobs
