Extract Dimension Hierarchy Metadata XML Through DM and Extender BR

Question

Hi all,
&nbsp;
I came across a very helpful post that shows how to automate extracting metadata for backup. (original code at the bottom of post)
https://community.onestreamsoftware.com/t5/Accepted-Code-Samples/Extender-Automate-Application-Metadata-Backup/ta-p/6914&nbsp;
&nbsp;
I tried this business rule and it works perfectly, however I am looking for something a little more specific since this returns a massive dump of data. Basically, I am looking to automate a metadata xml extract of specific dimensions and their members / relationships separately into different files and combine them into a zip package. Is there any documentation that shows how to edit this xmlOptions syntax below to include specified return xml values instead of just extracting all items?&nbsp;
'Set the extract options
Dim xmlOptions As New XmlExtractOptions
xmlOptions.ExtractAllItems = True
&nbsp;

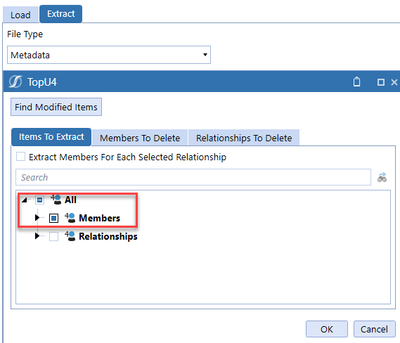

Ideally in the package, each dimension would have two files. I would have two files as such:
- TopU4 Members
- TopU4 Relationships

'Prepare the Stage Data Extract File path
Dim configSettings As AppServerConfigSettings = AppServerConfig.GetSettings(si)

'Folder path to save export
Dim folderPath As String = FileShareFolderHelper.GetDataManagementExportUsernameFolderForApp(si, _
	True, configSettings.FileShareRootFolder, si.AppToken.AppName) &amp; _
	"\" &amp; DateTime.UtcNow.ToString("yyyyMMdd") &amp; "\MetadataExtracts"

'Check if folder path for export exists
If Not Directory.Exists(folderPath) Then
	Directory.CreateDirectory(folderPath)
end if

Dim filePath As String = folderPath &amp; "\" &amp; si.AppToken.AppName &amp; ".zip"

'Check if file already exists.  If so then delete exsiting copy
If File.Exists(filePath) Then
	File.Delete(filePath)
end if

'Set the extract options
Dim xmlOptions As New XmlExtractOptions
xmlOptions.ExtractAllItems = True

'Execute the Metadata Extract
Using dbConnFW As DBConnInfo = BRAPi.Database.CreateFrameworkDbConnInfo(si)
	Using dbConnApp As DBConnInfo = BRAPi.Database.CreateApplicationDbConnInfo(si)

		Dim zipBytes As Byte() = ApplicationZipFileHelper.Extract( _
					dbConnFW, dbConnApp, Nothing, xmlOptions)

'Push the resulting content to a new zip file we create
		Using FS As New FileStream(filePath, FileMode.Append, FileAccess.Write)

'Create a binary writer, and write all bytes to the FileStream at once
			Using BW As New BinaryWriter(FS)
				BW.Write(zipBytes)
			End Using
		End Using
	End Using
End Using
&nbsp;
&nbsp;Thank you in advance!!

PeterFu · Answer

Hi Abrandm,
&nbsp;
Take a look at the BR below for extract of an Entity dimension.
Imports System
Imports System.Data
Imports System.Data.Common
Imports System.IO
Imports System.Collections.Generic
Imports System.Globalization
Imports System.Linq
Imports Microsoft.VisualBasic
Imports System.Windows.Forms
Imports OneStream.Shared.Common
Imports OneStream.Shared.Wcf
Imports OneStream.Shared.Engine
Imports OneStream.Shared.Database
Imports OneStream.Stage.Engine
Imports OneStream.Stage.Database
Imports OneStream.Finance.Engine
Imports OneStream.Finance.Database

Namespace OneStream.BusinessRule.Extender.XFR_ExportAppTypes

Public Class MainClass

'------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
		'Reference Code: XFR_ExportAppTypes
		'
		'Description:                   Executes application extracts and produces XML file.
		'                                         This can be run for different extract types like Metadata or CubeViews
		'                                         The file is written to the application Data Mgmt Export folder in the file share directory.
		'
		'Usage:                             Can be executed from Business Rule editor or run as part of a Data Management sequence.
		'
		'Created By:                    Peter Fu
		'
		'Date Created:                06-05-2021
		'------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
		Public Function Main(ByVal si As SessionInfo, ByVal globals As BRGlobals, ByVal api As Object, ByVal args As ExtenderArgs) As Object
			Try
				Select Case args.FunctionType
					Case Is = ExtenderFunctionType.ExecuteDataMgmtBusinessRuleStep
						'Get Configuration Settings
						Dim configSettings As AppServerConfigSettings = AppServerConfig.GetSettings(si)
						'Data Management extract location
						Dim folderPath As String = FileShareFolderHelper.GetDataManagementExportUsernameFolderForApp(si, True, configSettings.FileShareRootFolder,
						 si.AppToken.AppName
						 ) &amp; "\" &amp; DateTime.UtcNow.ToString("yyyyMMdd") &amp; "\Extracts"  'If the directory does not exist create
If Not Directory.Exists(folderPath) Then Directory.CreateDirectory(folderPath)
						'Full path and file name for extract
						Dim filePath As String = folderPath &amp; "\MetadataEntity " &amp; DateTime.UtcNow.ToString("yyyyMMdd") &amp; ".xml"
						'If file already exist
						If File.Exists(filePath) Then File.Delete(filePath)
						'Extract Options
						Dim xmlOptions As New XmlExtractOptions
						xmlOptions.ExtractAllItems = False
						'Extract dimensions
						Dim extractDict As New Dictionary(Of XmlExtractItemPk, Boolean)
						extractDict.Add(New XmlExtractItemPk(XmlExtractItemType.Dimensions), True)
						'Extract Houston Entities
						Dim dimID As Integer = BRApi.Finance.Dim.GetDimPk(si, "HoustonEntities").DimId
						extractDict.Add(New XmlExtractItemPk(XmlExtractItemType.Dimension, dimID), True)
						'Execute the Metadata Extract
						Using dbConnFW As DbConnInfo = BRApi.Database.CreateFrameworkDbConnInfo(si)
							Using dbConnApp As DbConnInfo = BRApi.Database.CreateApplicationDbConnInfo(si)
								'Extract XML metadata to target location
								File.WriteAllText(filePath, MetadataExtract.ExtractXml(dbConnFW, dbConnApp, xmlOptions, extractDict))
							End Using
						End Using

End Select

Return Nothing
			Catch ex As Exception
				Throw ErrorHandler.LogWrite(si, New XFException(si, ex))
			End Try
		End Function
	End Class
End Namespace

&nbsp;
Regards,
Peter

PeterFu · Answer

Hi Adam,&nbsp;Take a look at the BR below.&nbsp;&nbsp;Imports SystemImports System.DataImports System.Data.CommonImports System.IOImports System.Collections.GenericImports System.GlobalizationImports System.LinqImports Microsoft.VisualBasicImports System.Windows.FormsImports OneStream.Shared.CommonImports OneStream.Shared.WcfImports OneStream.Shared.EngineImports OneStream.Shared.DatabaseImports OneStream.Stage.EngineImports OneStream.Stage.DatabaseImports OneStream.Finance.EngineImports OneStream.Finance.DatabaseNamespace OneStream.BusinessRule.Extender.XFR_ExportAppTypes&nbsp; &nbsp; Public Class MainClass&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; '------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------&nbsp; &nbsp; &nbsp; 'Reference Code: &nbsp; &nbsp; &nbsp; &nbsp; XFR_ExportAppTypes&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; '&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 'Description: &nbsp; &nbsp; &nbsp; &nbsp;Executes application extracts and produces XML file.&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; ' &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;This can be run for different extract types like Metadata or CubeViews&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; ' &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;The file is written to the application Data Mgmt Export folder in the file share directory.&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; '&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 'Usage: &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;Can be executed from Business Rule editor or run as part of a Data Management sequence.&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; ' &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 'Created By: &nbsp; &nbsp; &nbsp; &nbsp; Peter Fu&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; '&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 'Date Created: &nbsp; &nbsp; &nbsp; 06-05-2021&nbsp; &nbsp; &nbsp; '------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; Public Function Main(ByVal si As SessionInfo, ByVal globals As BRGlobals, ByVal api As Object, ByVal args As ExtenderArgs) As Object&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; Try&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; Select Case args.FunctionType&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; Case Is = ExtenderFunctionType.ExecuteDataMgmtBusinessRuleStep&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 'Get Configuration Settings&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; Dim configSettings As AppServerConfigSettings = &nbsp;AppServerConfig.GetSettings(si)&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 'Data Management extract location&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; Dim folderPath As String = FileShareFolderHelper.GetDataManagementExportUsernameFolderForApp(si, True, configSettings.FileShareRootFolder, _&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; si.AppToken.AppName) &amp; "\" &amp; DateTime.UtcNow.ToString("yyyyMMdd") &amp; "\Extracts"&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 'If the directory does not exist create&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; If Not Directory.Exists(folderPath) Then Directory.CreateDirectory(folderPath)&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 'Full path and file name for extract&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; Dim filePath As String = folderPath &amp; "\MetadataEntity " &amp; DateTime.UtcNow.ToString("yyyyMMdd") &amp; ".xml"&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 'If file already exist&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; If File.Exists(filePath) Then File.Delete(filePath)&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; '-------------------------------------------------------------------------------------------------------------------------&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 'Extract Options&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; Dim xmlOptions As New XmlExtractOptions&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; xmlOptions.ExtractAllItems = False&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 'Extract dimensions&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; Dim extractDict As New Dictionary(Of XmlExtractItemPk, Boolean)&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; extractDict.Add(New XmlExtractItemPk(XmlExtractItemType.Dimensions), True)&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 'Extract Entities&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; Dim dimID As Integer = BRApi.Finance.Dim.GetDimPk(si, "CorpEntities").DimId&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; extractDict.Add(New XmlExtractItemPk(XmlExtractItemType.Dimension, dimID), True)&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 'Define dimension options for extract&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; Dim xmlDimOptions As New XmlExtractMetadataDimOptions&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 'Extract specified members&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; xmlDimOptions.ExtractAllMembers = False&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 'Member(s) to extract&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; Dim memExtract As New Dictionary(Of String, Object)&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; memExtract.Add("All Orgs", Nothing)&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 'memExtract.Add("Corporate", Nothing)&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; xmlDimOptions.MembersToExtract = memExtract&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 'Extract all member relationships&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; xmlDimOptions.ExtractAllRelationships = False&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 'Extract members for each relationship&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; xmlDimOptions.ExtractMembersForEachSelectedRelationship = False&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 'Define Metadata extract options&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 'Dim EntID As New Dictionary(Of DimPk, XmlExtractMetadataDimOptions)&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 'EntID = BRApi.Finance.Dim.GetDimPk(si, "Total Golfstream")&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; Dim xmlMetadataOptions As New XmlExtractMetadataOptions()&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 'Entity Dimension type&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; Dim dimT As Integer = DimType.Entity.Id&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 'Set the extract dimension options for specified dimension&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; xmlMetadataOptions.SetOptionsForDimension(dimT, dimID, xmlDimOptions)&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 'Add dimension member options to metadata options&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; xmlOptions.MetadataOptions = xmlMetadataOptions &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 'Execute the Metadata Extract&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; Using dbConnFW As DbConnInfo = BRApi.Database.CreateFrameworkDbConnInfo(si)&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; Using dbConnApp As DbConnInfo = BRApi.Database.CreateApplicationDbConnInfo(si)&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 'Extract XML metadata to target location&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; File.WriteAllText(filePath, MetadataExtract.ExtractXml(dbConnFW, dbConnApp, xmlOptions, extractDict))&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; End Using&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; End Using &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; End Select&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; Return Nothing&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; Catch ex As Exception&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; Throw ErrorHandler.LogWrite(si, New XFException(si, ex))&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; End Try&nbsp; &nbsp; &nbsp; &nbsp; End Function&nbsp; &nbsp; End ClassEnd Namespace#End Region "Export Dimension Metadata to XML File"&nbsp;Regards,Peter

AdamB · Answer

Thank you Peter, this is very helpful! I was able to stack multiple dimensions into one metadata extract with this.

To take it one step further, do you know if there is a way to extract just the members out of a dimension or just the relationships? I would think that this could be done by adding this to the extractDict. I do not see anything related to this under the XmlExtractItemType though.

Thanks,

Adam

denisefockler · Answer

Peter, I know I am not the poster of the original question but I ran across your solution above as I am trying to automate the extract of simple parent/child relationships for a several of our dimensions.&nbsp; I tried your code above and I am getting the following error when compiling.&nbsp;

AdamB · Answer

Hi Denise, I am having this same issue. Thanks for your reply
