can we test if Workflow Channel is locked in a BR before taking requested action?

I need to test if a workflow channel is locked in a BR before performing the BR actions.  Can I test if the channel is locked?  How?

Admin
  • ckattookaran's avatar
    ckattookaran
    3 years ago

    You can get the status of a workflow.

    Dim wfClusterPk As WorkflowUnitClusterPk = BRAPi.Workflow.General.GetWorkflowUnitClusterPk(si, "Workflow name", "ScenarioNAme", "timeName")

				'Complete the IMPORT-VALIDATE-LOAD-PROCESS Workflow Steps

				'Get the Workflow info so that we can determine which steps can be executed.
				Dim wfInfo As WorkflowInfo = BRApi.Workflow.Status.GetWorkflowStatus(si, wfClusterPk, True)

5 Replies

Sort By
  • ckattookaran's avatar
    ckattookaran
    VIP
    3 years ago

    You can get the status of a workflow.

    Dim wfClusterPk As WorkflowUnitClusterPk = BRAPi.Workflow.General.GetWorkflowUnitClusterPk(si, "Workflow name", "ScenarioNAme", "timeName")

				'Complete the IMPORT-VALIDATE-LOAD-PROCESS Workflow Steps

				'Get the Workflow info so that we can determine which steps can be executed.
				Dim wfInfo As WorkflowInfo = BRApi.Workflow.Status.GetWorkflowStatus(si, wfClusterPk, True)
    • jzachar's avatar
      jzachar
      New Contributor
      3 years ago

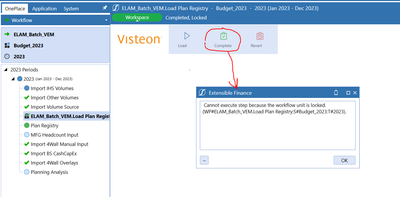

      I need to test the status of the workflow channel, not the Workflow itself.  I have a WF channel that when locked should NOT allow the BR attached to the 'Load' button to run.  When I click 'Complete' I get the below error (which is correct).  But when I click the 'Load' button the BR attached executes.  I need to test the status of the channel to see if it is locked prior to continuing with the BR



    • jzachar's avatar
      jzachar
      New Contributor
      3 years ago

      Thank you (code used below)



      'Check If WF channel locked/unlocked

      Dim wfStatus As WorkflowInfo = BRApi.Workflow.Status.GetWorkflowStatus(si, si.WorkflowClusterPk, True)

      If wfStatus IsNot Nothing Then
          If wfStatus.Locked Then

             ' Channel locked

         else

           ' channel unlocked\

         end if

      End if

    • Rev's avatar
      Rev
      New Contributor
      2 years ago

      Hi,



      I tried the above solution to check particular workflow's status and resulted in following error.

      "The given key was not found in the dictionary"

      Here is the code I tried:
